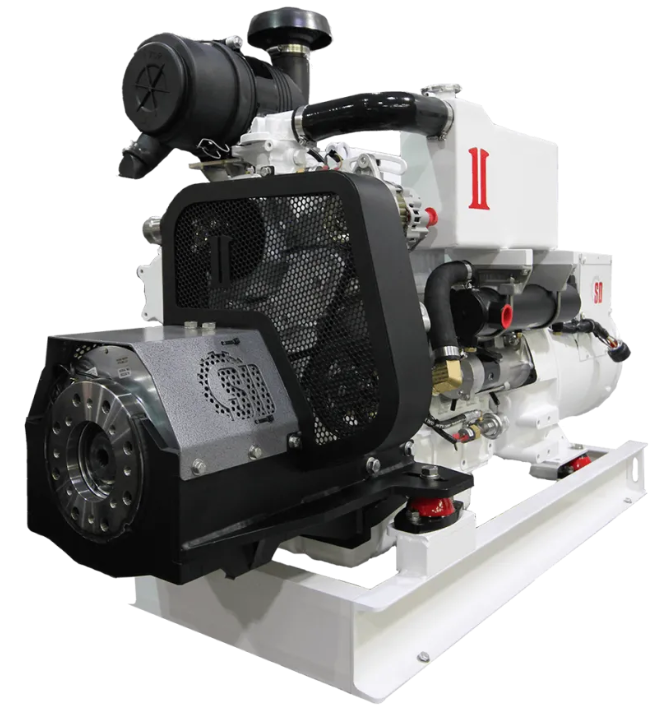

Bollard 28kW

:

• Isuzu and Kubota engines
• EPA/CARB certified 1800 RPM, Tier 3 Marine or Final Tier 4 Diesel
• Marathon motor start generator rated 80C/40C for maximum electrical efficiency
• Encapsulated automatic voltage regulator, 1% regulation-no load to full load
• Flush mount digital auto start control panel with 10′ harness extension
• Murphy Oil pressure and water temp gauges, LED readout for engine hours, RPM, AC generator HZ & voltage, DC charging voltage
• Automatic safety shutdowns for low oil pressure, high water temp, under/over speed, under/over voltage
• Structural steel welded base frame with vertical and horizontal gusset supports standard SAE fuel supply and return line fittings installed
• Coast Guard approved, powder coated, steel mesh belt guard
• Engineered Isoflex™ anti-vibration mounts between engine/generator and base frame
• Closed crankcase engine ventilation filter system
• Air intake filter/intake silencer – Donaldson style dry element, dual filtration
• 12V Starter & Alternator
• Imron™ two-part Epoxy Marine paint for maximum corrosion protection
• Stainless steel fasteners and powder coated accessory brackets
• Single phase 4 wire generators oversized to allow full load single phase output 105/40c @ 1.0PF
• Three phase generators are 12 lead reconnectable voltage, 50Hz or 60HZ
• Heat Exchanger cooled engines use bronze raw water pumps and Cu/Ni HE cores
• Water injected exhaust elbows are available at additional cost
• Generators are calibrated and load tested under full load before shipment
