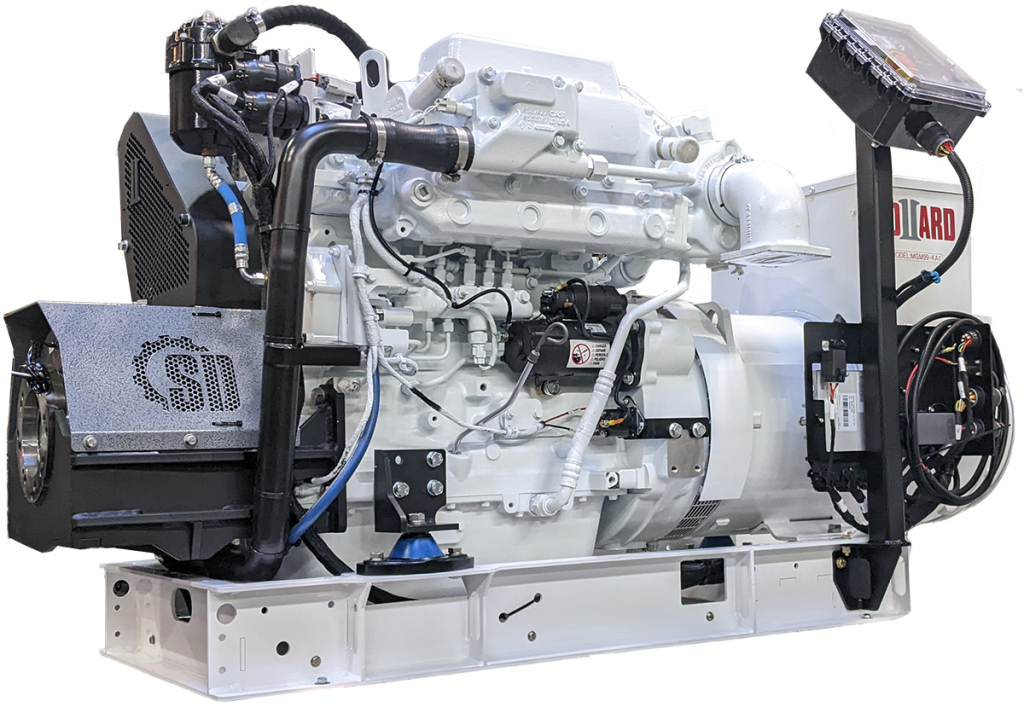

Bollard 99kW

:

• John Deere 1800 RPM, EPA/CARB certified Tier 3 marine diesel engines
• Marathon motor start generator rated 80C/40C for maximum electrical efficiency
• Dedicated PMG excitation with 300% short circuit protection and VFD compatibility
• Digital parallelable automatic voltage regulator – .25% voltage regulation no load to full load
• Remote start digital control panel with J1939 diagnostics and 3′ extension harness
• Automatic safety shutdowns for low oil pressure, high water temp and over speed
• Structural steel welded base frame with vertical and horizontal gusset supports
• Coast Guard approved JIC fuel supply and return line fittings installed
• Isoflex™ anti-vibration mounts between engine/generator and base frame
• Closed crankcase engine ventilation filter system
• Dry element cleanable combination air intake filter/intake silencer
• Dry exhaust elbow with mating flange, high temperature gasket and stainless hardware
• Coolant recovery bottle
• Starter and alternator 12V std on 40kW-150kW, 24V std 200kW-385kW
• Imron™ two-part epoxy marine paint for maximum corrosion protection
• Stainless steel fasteners and powder coated accessory brackets
• All generators are calibrated, and load tested under full load before shipment
• Single phase 4 wire generators are oversized to allow full load single phase output 105/40c @ 1.0PF
• Three phase generators are 12 lead reconnectable voltage, 50Hz or 60HZ
• Heat exchanger cooled engines include bronze gear driven raw water pumps and Cu/Ni HE cores
• Stainless steel water injected exhaust elbows are Included with HE cooled engines
